Product Angles

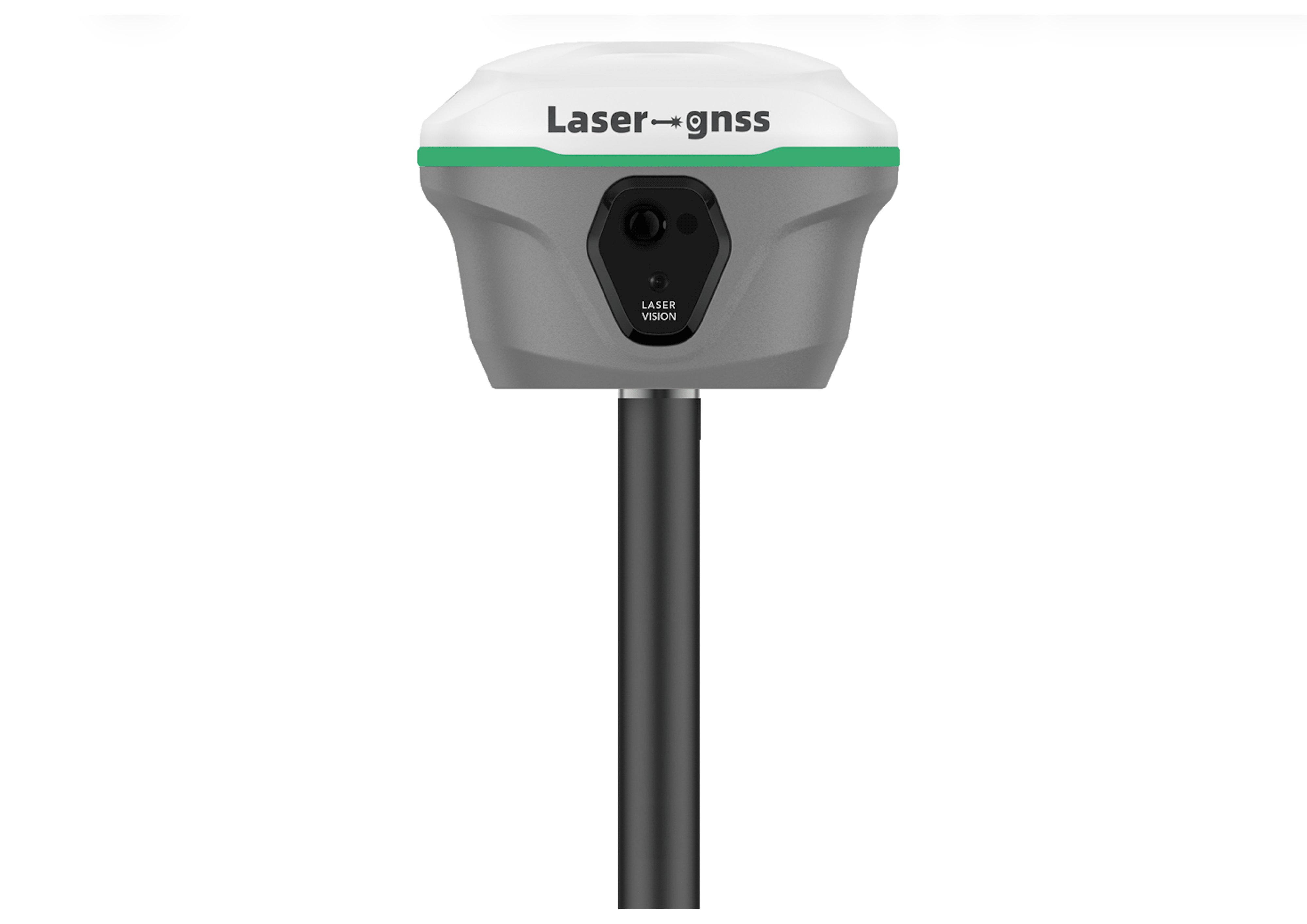

Front View

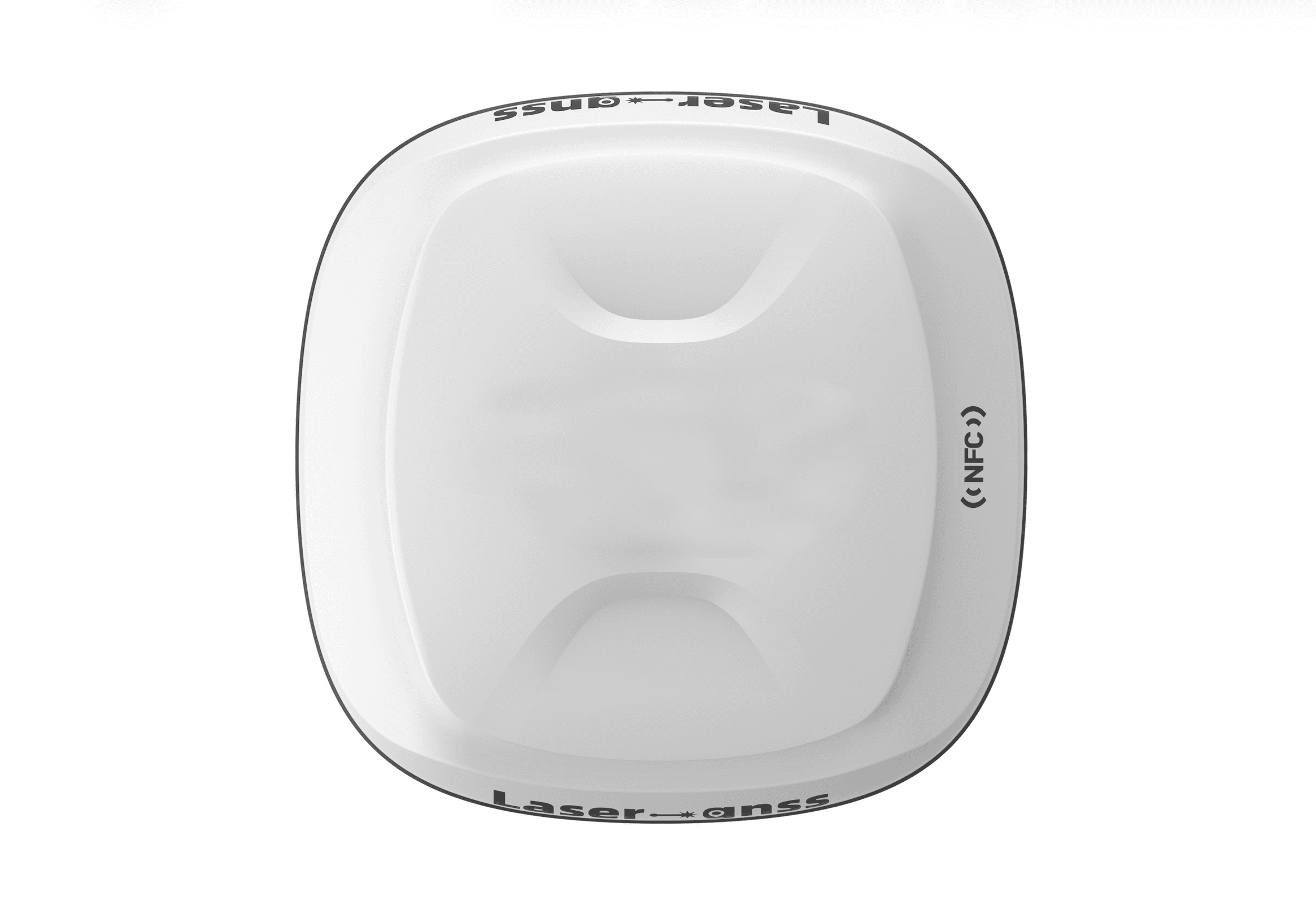

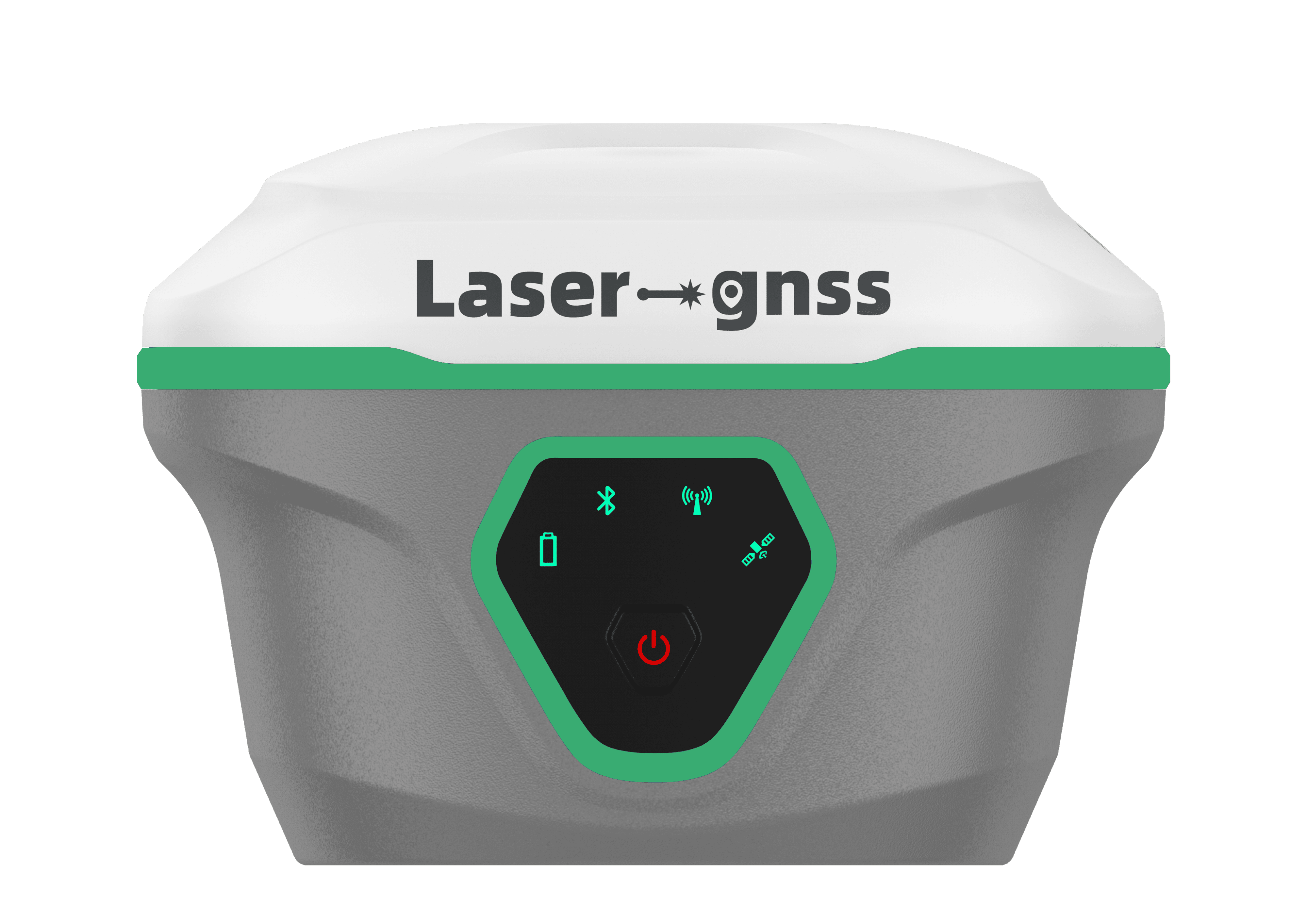

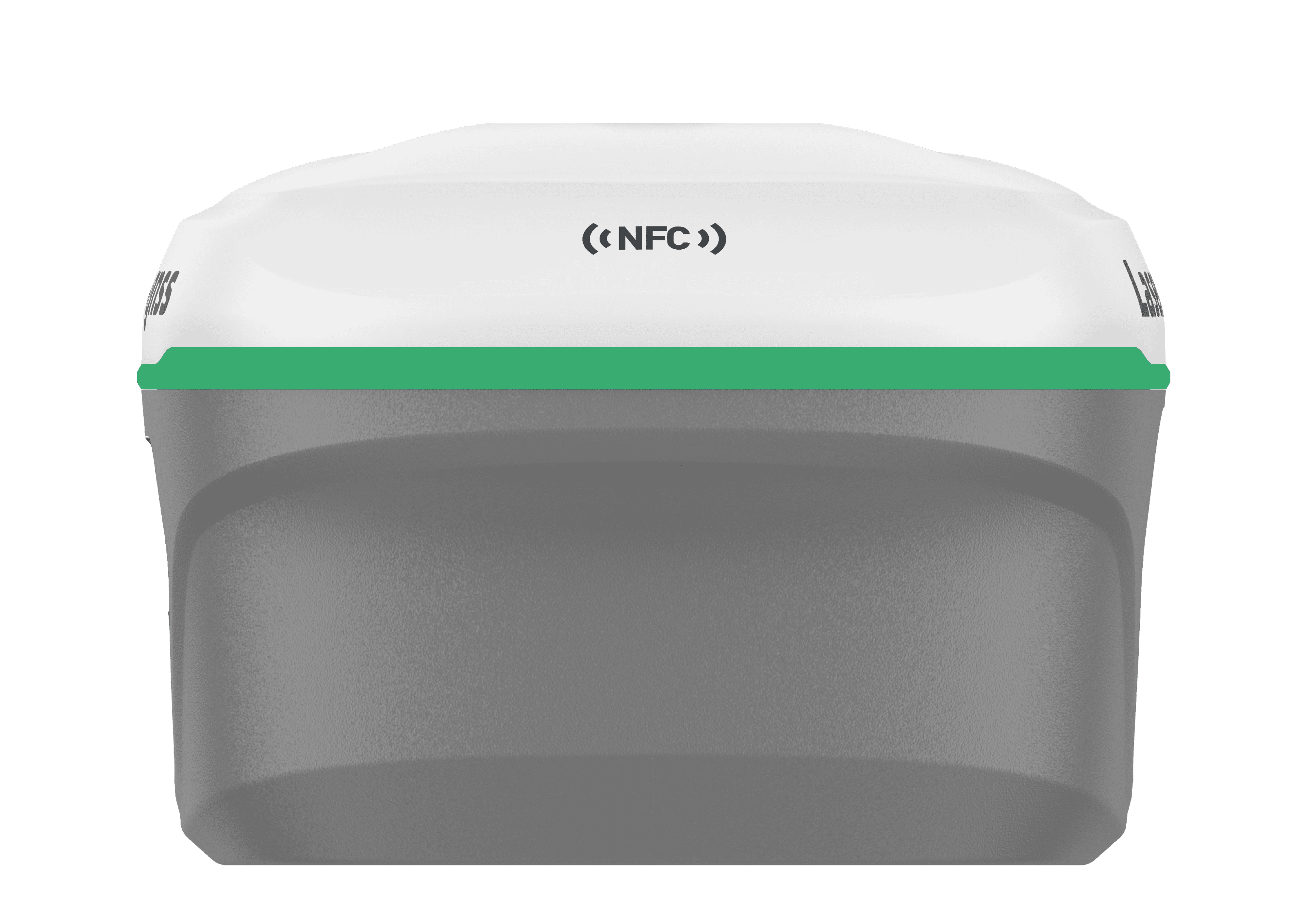

Use the image gallery to inspect the product from multiple angles — front, back, side, and more.
A portable multi-functional GNSS with built-in high-precision positioning, 4G full network access, Bluetooth, WiFi, and integrated data transmission radio. High-precision IMU with AR and Laser for advanced tilt measurement, laser measurement, and AR real-time stakeout.
A portable multi-functional GNSS designed for professionals who demand the most advanced laser targeting, AR stakeout, and high-precision IMU tilt measurement capabilities in one integrated device.
Laser Accuracy
2.5cm @5m
Tilt Range
60°
LORA Range
15km
G12 Pro is a portable multi-functional GNSS with a built-in high-precision positioning module that supports tracking satellite signals from all systems and frequency bands. It is equipped with 4G full network access, Bluetooth, WiFi and built-in data transmission radio. The high-precision IMU integrates AR and Laser to achieve tilt measurement, laser measurement and AR real-time stakeout, making measurement work more convenient and efficient.
Visual Laser Targeting seamlessly integrates laser and imaging technologies, displaying the laser spot directly on the screen for fast, intuitive aiming.
Laser Stakeout lets you stake everything you can see — the laser points directly at the target with clearly visible indication, achieving precise stakeout from several meters away with a single click.
Better AR Stakeout Experience with visual positioning overlaying design files onto real scenes, 360-degree switching between handheld controller and rover.
Up to 60° tilt within 2.5cm accuracy using calibration-free IMU technology for consistent tilt measurement at extreme angles.
Built-in LORA Radio with cross-brand compatibility, delivering over 15 km working range in typical environments.
CAD Real-Scene 3D Stakeout combining a high-performance CAD engine with real scenes for precise, seamless integration and one-step stakeout.
4G Full NetCom based on Linux platform fully supports 2/3/4G networks for better compatibility, stronger signals, and more stable connections.
G-Fix Correction Outage Technology extends the RTK Fix solution up to 10 minutes, reducing downtime waiting to re-establish corrections.
Galileo HAS and BDS PPP Service supported — free high-precision PPP correction services for improved real-time positioning.
