1408-Channel Multi-Band Flagship

Product Angles

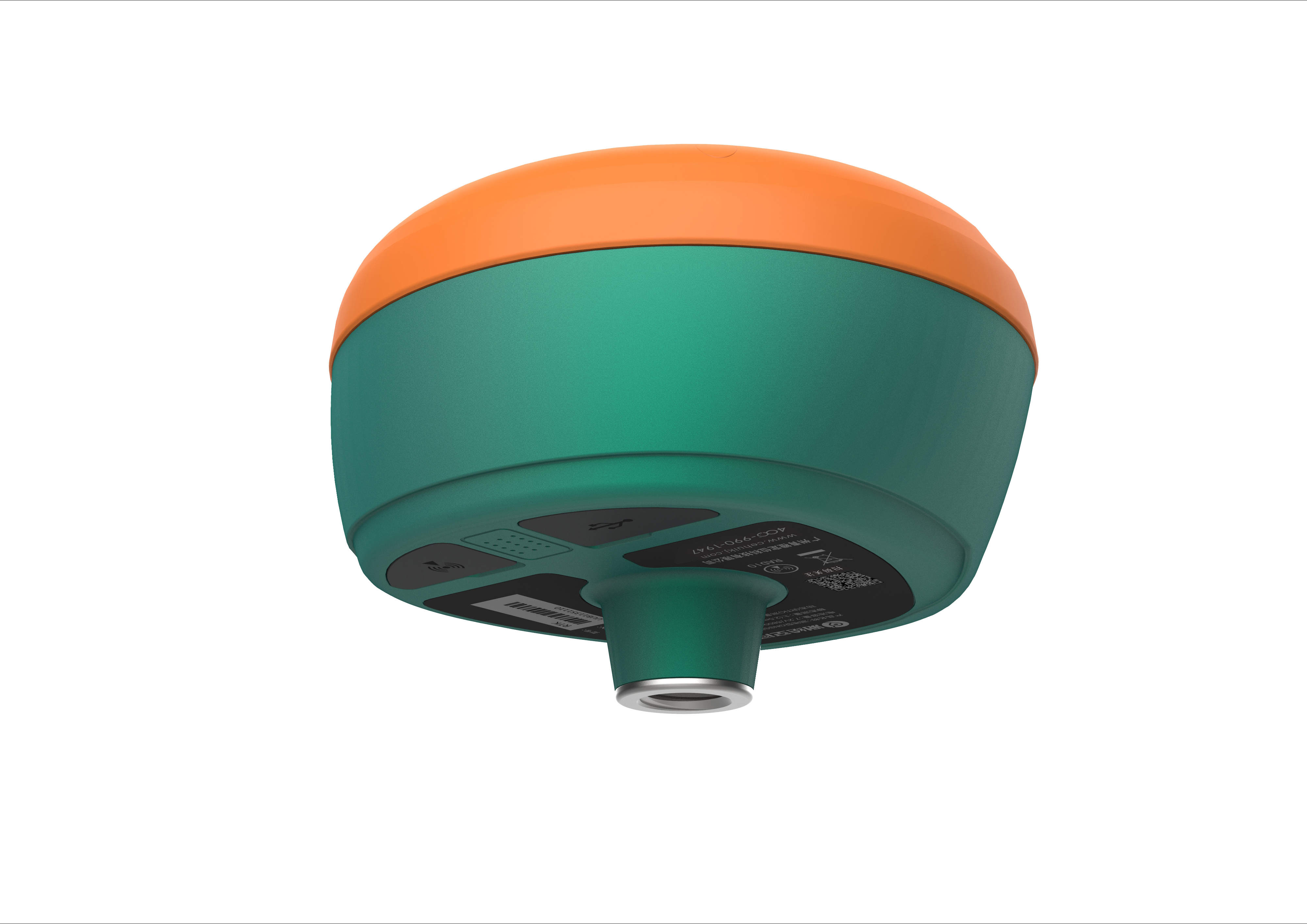

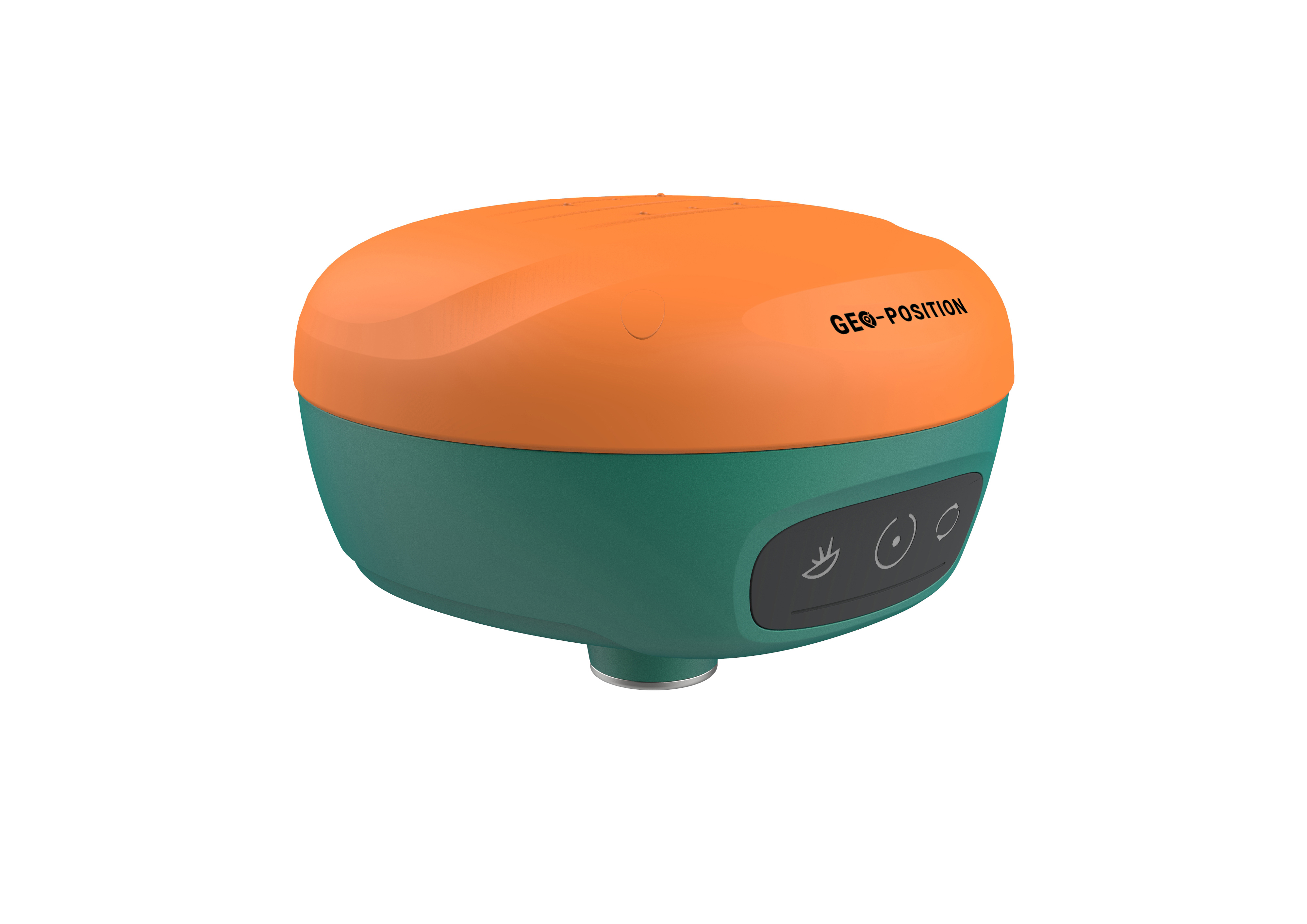

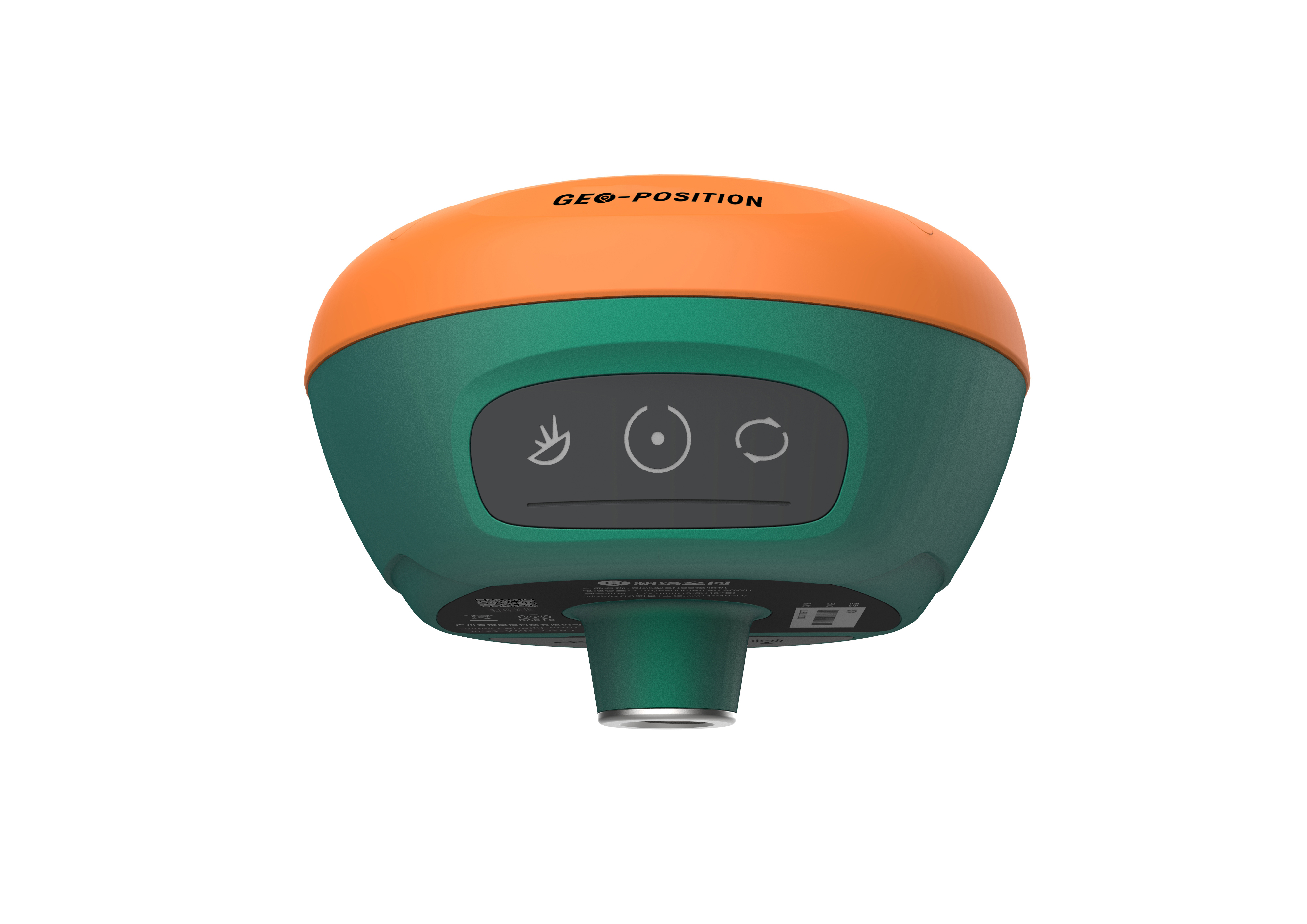

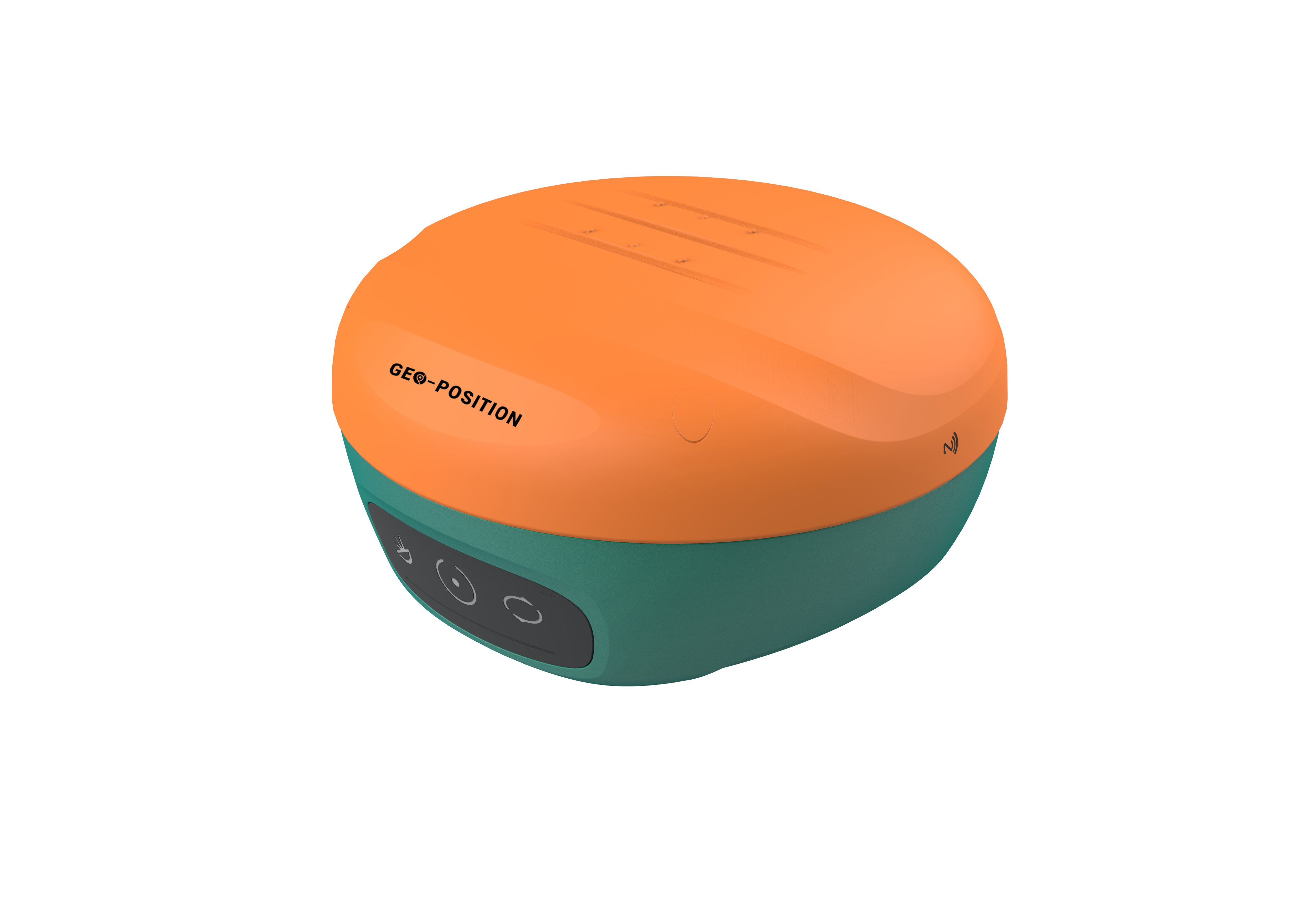

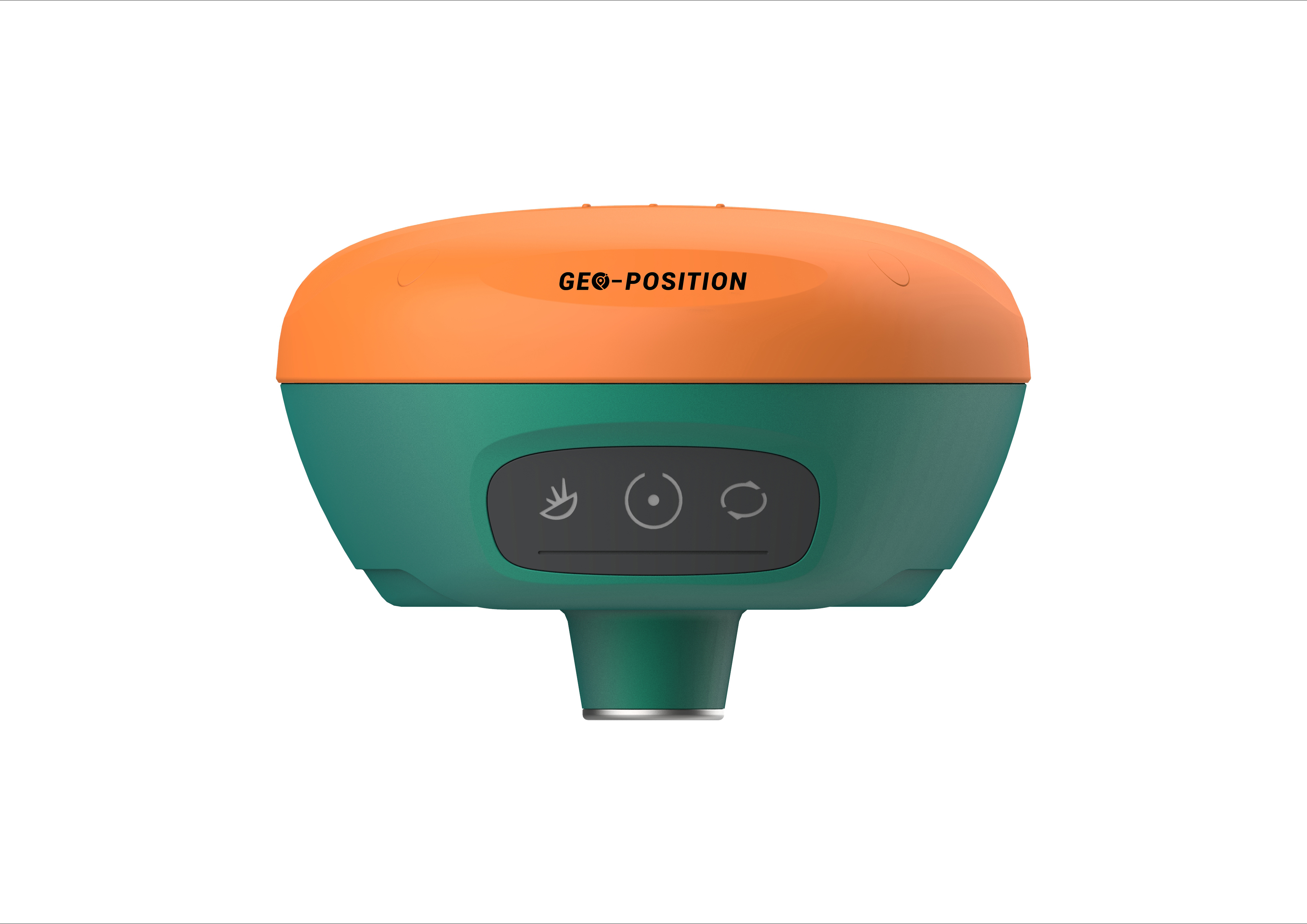

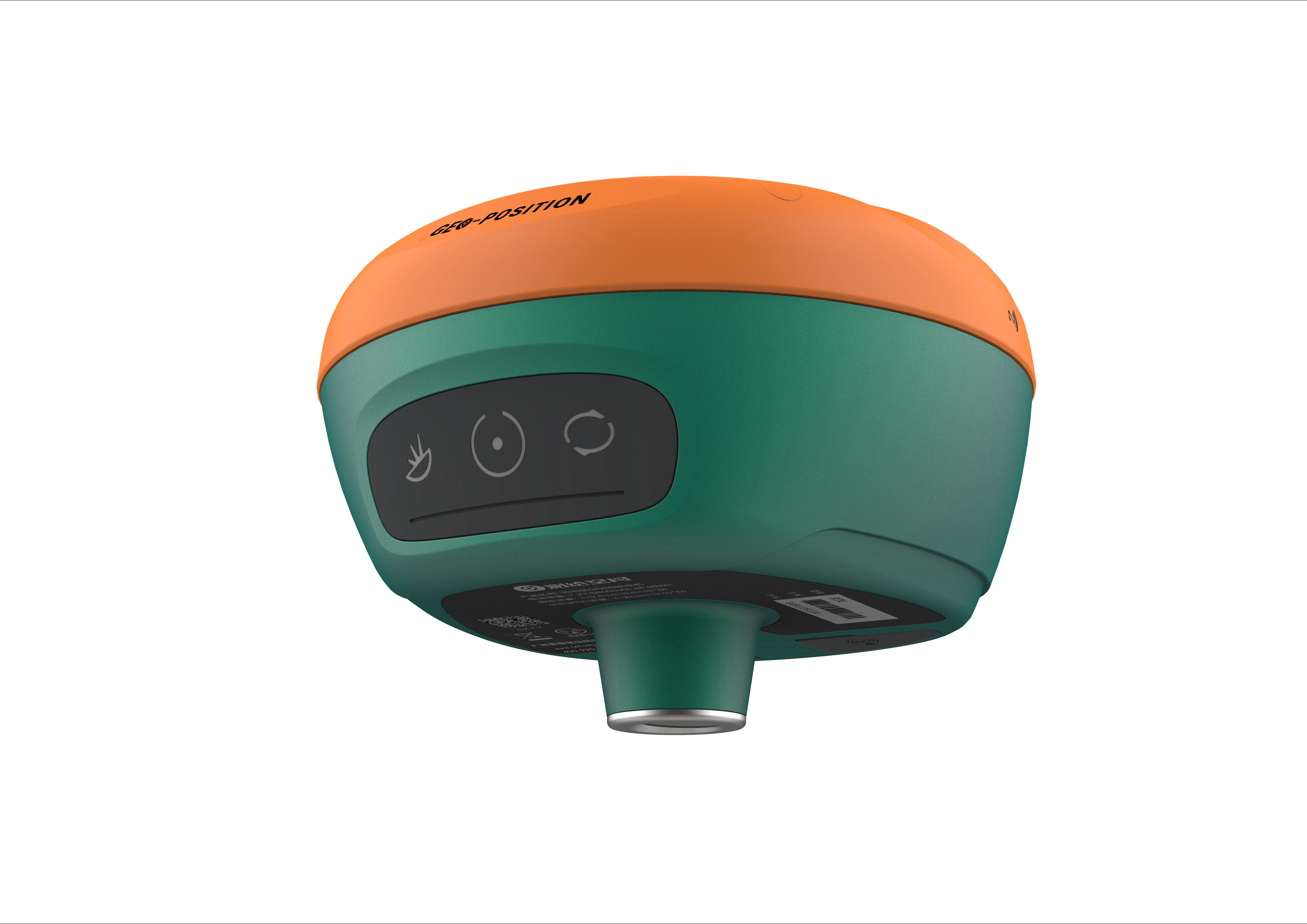

Perspective 01

Use the image gallery to inspect the product from multiple angles — front, back, side, and more.

G6

GEO-POSITION G6 GNSS RTK receiver is more than a universal 1408-channel multi-band IMU-RTK GNSS receiver, it is the perfect GNSS RTK survey tool that any surveying, construction or mapping professional has come to expect.

GEO-POSITION G6 GNSS RTK receiver — the perfect surveying tool with 1408 channels, multi-band IMU-RTK, calibration-free tilt IMU, and built-in connectivity for any job site configuration.

Tracking Channels

1408

RTK Accuracy

8mm+1ppm

Battery Life

24h

1408 ChannelsMulti-ConstellationCal-Free IMUH: 8mm+1ppmV: 15mm+1ppm24h Battery

Request Quote View PDF Guide

Overview

G6 is a universal 1408-channel multi-band IMU-RTK GNSS receiver. Built-in connectivity modules such as Wi-Fi, Bluetooth, NFC and UHF radio can be used reliably in a variety of application scenarios. Multiple constellation and frequency tracking, a powerful RTK engine, and calibration-free tilt compensation IMU technology make the G6 easy to get fixed solution in most demanding environments. Compact design with diameter 132mm, weight only 0.83kg, and 24-hour battery life with intelligent battery management.

Specifications

Channels: 1408
Satellite Systems: GPS, BDS, GLONASS, Galileo, QZSS, SBAS, IRNSS, L-Band (B2b PPP)
Static Accuracy: H: 2.5mm+0.1ppm RMS / V: 3.5mm+0.4ppm RMS
RTK Accuracy: H: 8mm+1ppm RMS / V: 15mm+1ppm RMS
Init Time: < 10s (reliability > 99.9%)
Battery: 7.4V/6800mAh lithium-ion, 24h operation
Weight: 0.83 kg (includes battery)
Dimensions: 132mm x 67mm
Protection: IP68, 2m drop survival
Communication: Bluetooth 4.2, Wi-Fi 2.4GHz, NFC, UHF 410-470MHz

Working Modes

Designed to adapt to different field requirements with flexible working configurations.

Single-Rover Mode

Rover + CORS account for centimeter-level positioning

Lower cost and lighter field setup
Wide signal coverage in areas with stable network service
No local base station deployment required

Best for

Short-term projects and areas with dependable network signal

1+1 Mode

Base station + rover for centimeter-level positioning

One-time purchase with permanent self-owned use
More stable signal behavior in weak-signal zones
Better fit for repeat work and difficult terrain

Best for

Long-term survey projects, mountain regions, and highway corridors

Key Features

1408-channel multi-band tracking across 8 satellite systems for reliable positioning in any environment.

Calibration-free tilt compensation IMU — 3.0cm accuracy at 70° inclination, measure points that previously could not be measured.

Built-in connectivity modules: Wi-Fi, Bluetooth, NFC, UHF radio (410-470MHz, 116 channels, 0.5W/1W/2W).

Compact and lightweight — diameter 132mm, weight only 0.83kg, with intelligent voice prompt system and NFC quick connection.

24-hour long battery life with intelligent battery management, internal 7.4V/6800mAh lithium-ion rechargeable battery.

Powerful RTK engine with fast initialization (<10s), >99.9% reliability, and G-FiX technology for accuracy during signal outages.

Deployment Setups

The following setups describe typical field configurations based on the operating mode reference.

Single-rover setup: GNSS host, handheld controller, carbon pole, and CORS account.

1+1 setup: base host, rover host, extension rod, radio, tripod, transmitting antenna, receiving antenna, controller, and carbon pole.

External power or battery pack can be configured to match the project duration and local setup plan.
